Project Mad Hatter - Mechancial

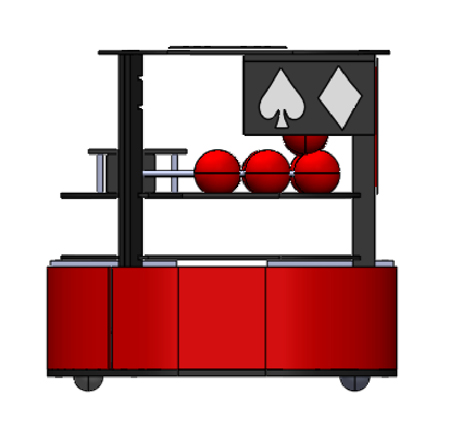

Front Side

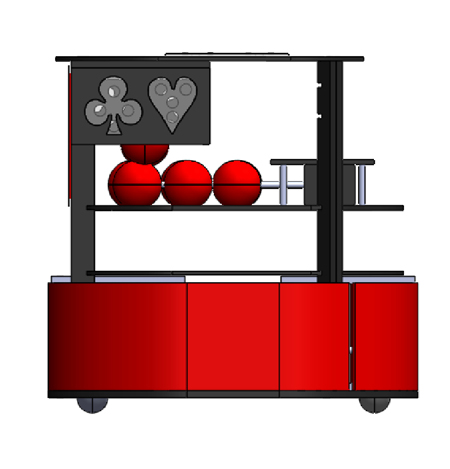

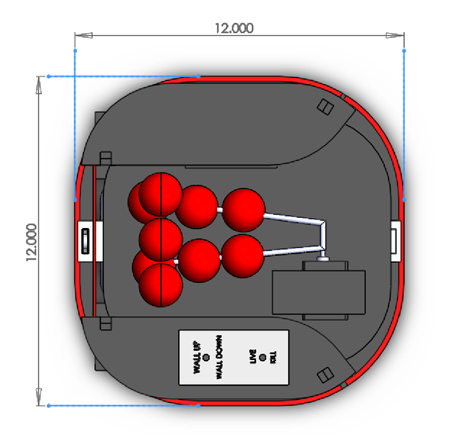

Alice's pivoting puncher sits on a middle shelf and tucks completely into the 12x12x11.5 inch boundary of the outer perimeter.

FrontSide

Drive Train

We decided to use a timing belt and gear train from McMaster-Carr. The gear ratio was 1.7 to 1. It was a challenge to make a sturdy and tensionable belt system. We decided to cut slots in the base platform to allow for a sliding motor mount platform. We used Four sets of bolts on each side to tighten down the motor platform once we decided on an apporpriate tension. In order to ensure a frictionless system, we used nylon bushings. In order to reduce slack between the motor and the wheel (since we were using the encoders), we decided to use permanent (stiff) couplers instead of the spider couplers that were provided in lab. These couplers were extremely effective and never slipped.

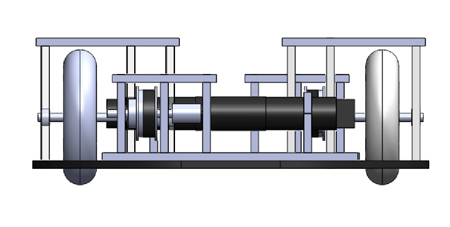

DriveTrainSideView

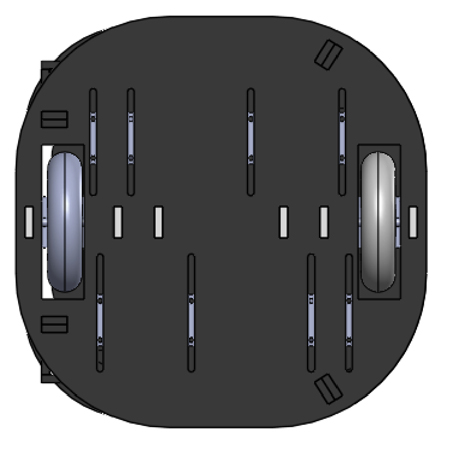

BaseOfTheBot

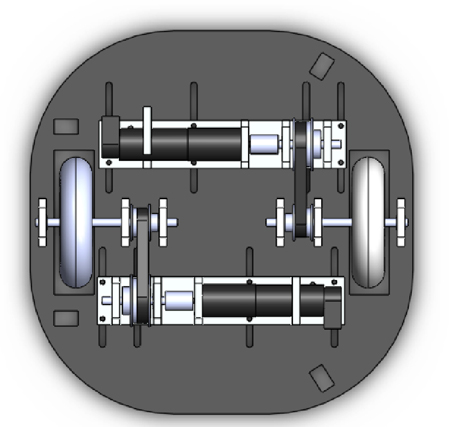

DriveTrainTopView

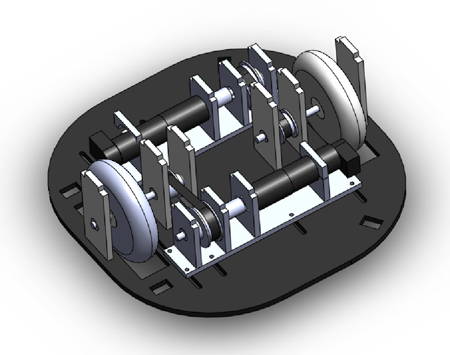

IsoViewDriveTrain

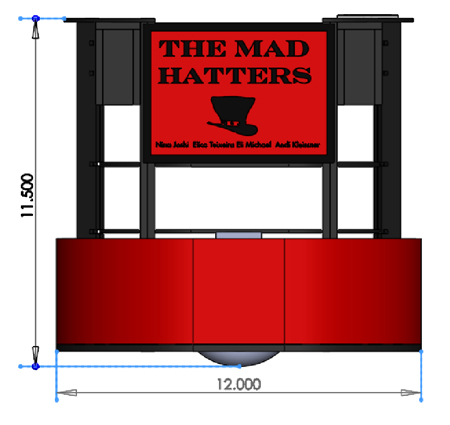

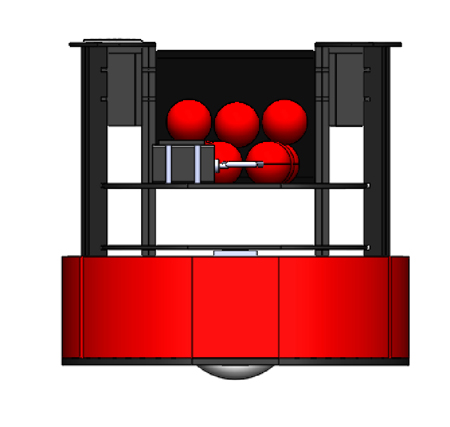

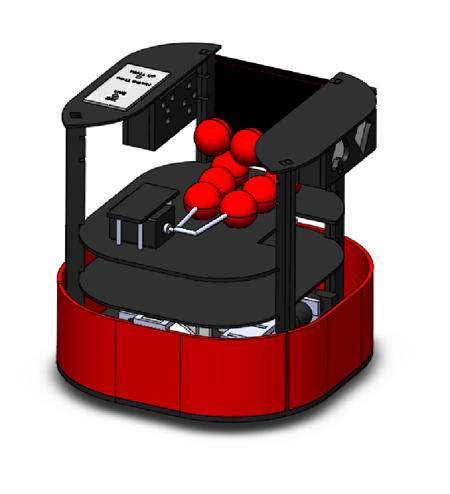

	CAD Design and Modeling Bot Overview Front Side Alice's pivoting puncher sits on a middle shelf and tucks completely into the 12x12x11.5 inch boundary of the outer perimeter. Rear Side Left Side Drive Train We decided to use a timing belt and gear train from McMaster-Carr. The gear ratio was 1.7 to 1. It was a challenge to make a sturdy and tensionable belt system. We decided to cut slots in the base platform to allow for a sliding motor mount platform. We used Four sets of bolts on each side to tighten down the motor platform once we decided on an apporpriate tension. In order to ensure a frictionless system, we used nylon bushings. In order to reduce slack between the motor and the wheel (since we were using the encoders), we decided to use permanent (stiff) couplers instead of the spider couplers that were provided in lab. These couplers were extremely effective and never slipped.
